Magnesium Anode

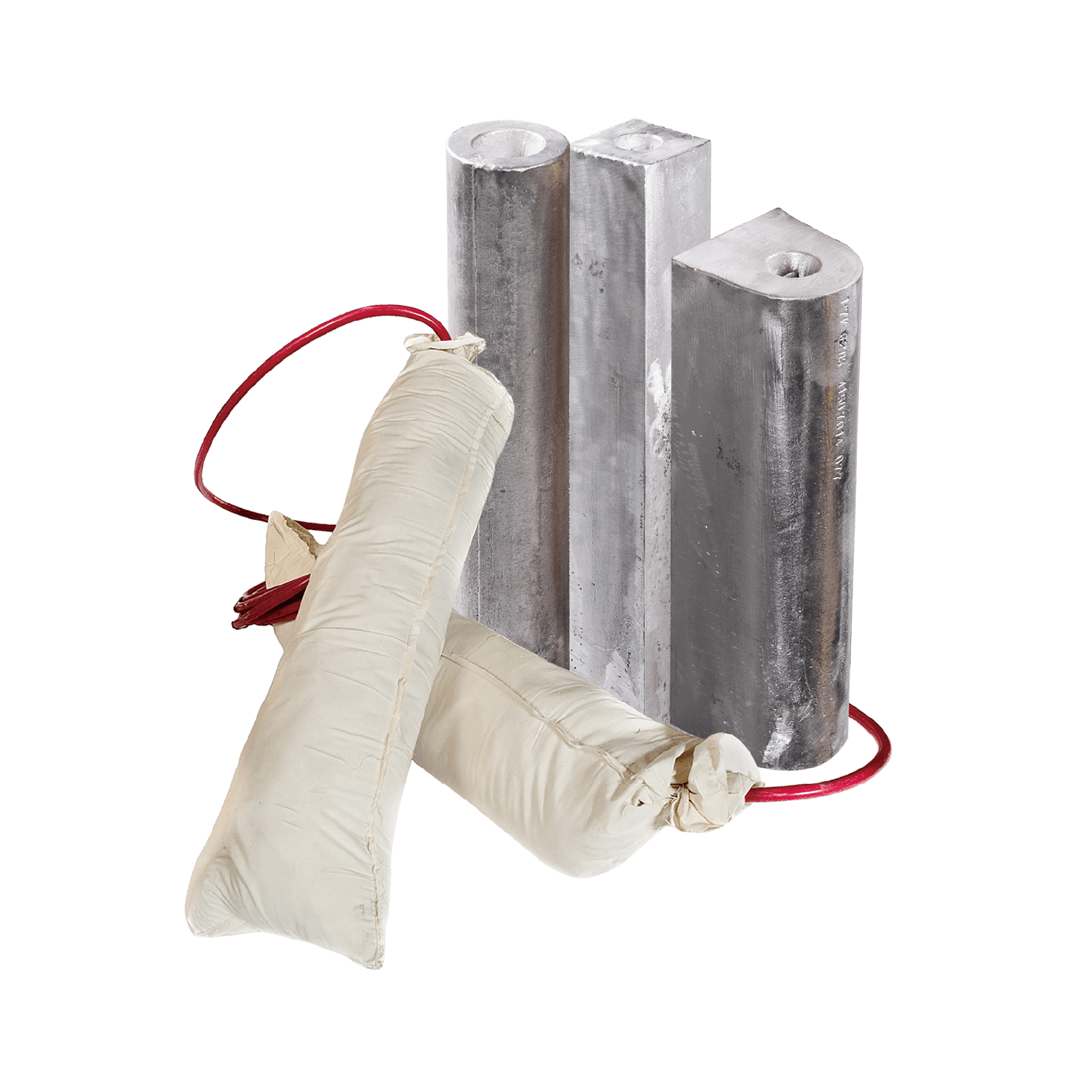

ECOANODE’s packaged magnesium anodes are engineered for maximum performance in underground cathodic protection systems. The core of each unit is a high-purity magnesium alloy, selected for its superior electrochemical activity and high driving voltage, which generates exceptional current efficiency. This ensures powerful and responsive protection, even in high-resistivity soils. Each anode is securely pre-packaged within a specialized, low-resistance moisture-retaining backfill, contained in a robust, biodegradable cotton bag. This engineered system is crucial for two primary reasons: it dramatically reduces the anode’s grounding resistance by creating a stable, conductive environment, and it simplifies installation to a straightforward “dig-and-bury” process, eliminating the need for on-site backfill mixing.
This design guarantees a consistent voltage output and an extended service life, providing a completely maintenance-free corrosion defense solution. Ideal for critical infrastructure where long-term reliability is non-negotiable, our anodes are specifically tailored for demanding applications across a broad spectrum, including buried oil and gas transmission pipelines, municipal water and storage tank networks, and other essential utility assets, ensuring their structural integrity for decades.
Share :
D-shape Anode
Model | Anode Dimensions ( W x H x L ) | Insert Dimensions | Prepackaged Size | Weight | ||||
High Potential | Standard Potential | Wc | T | Diameter | Length | N.W | G.W | |
EA-MG-B5D2 | 70 x 76 x 310 mm (2.8” x 3” x 12.2”) | 70 x 76 x 305 mm (2.8” x 3” x 12.0”) | 14 mm (0.6”) | 1.5 mm (0.06”) | 127 mm (5”) | 450 mm (17.7”) | 2.3 kg (5 lbs) | 8.2 kg (18.1 lbs) |
EA-MG-B5D3 | 89 x 95 x 190 mm (3.5” x 3.7” x 7.5”) | 89 x 95 x 180 mm (3.5” x 3.7” x 7.1”) | 14 mm (0.6”) | 1.5 mm (0.06”) | 160 mm (6.3”) | 300 mm (11.8”) | 2.3 kg (5 lbs) | 9 kg (19.8 lbs) |
EA-MG-B9D2-1 | 63.5 x 66 x 650 mm (2.5” x 2.6” x 25.6”) | 63.5 x 66 x 640 mm (2.5” x 2.6” x 25.2”) | 14 mm (0.6”) | 1.5 mm (0.06”) | 130 mm (5.1”) | 810 mm (31.9”) | 4.1 kg (9 lbs) | 25 kg (55.1 lbs) |
EA-MG-B9D2 | 70 x 76 x 545 mm (2.8” x 3” x 21.5”) | 70 x 76 x 540 mm (2.8” x 3” x 21.3”) | 14 mm (0.6”) | 1.5 mm (0.06”) | 140 mm (5.5”) | 690 mm (27.2”) | 4.1 kg (9 lbs) | 16 kg (35.3 lbs) |
EA-MG-B9D3 | 89 x 95 x 345 mm (3.5” x 3.7” x 13.6”) | 89 x 95 x 325 mm (3.5” x 3.7” x 12.8”) | 14 mm (0.6”) | 1.5 mm (0.06”) | 160 mm (6.3”) | 550 mm (21.7”) | 4.1 kg (9 lbs) | 16 kg (35.3 lbs) |
EA-MG-B14D2 | 70 x 76 x 850 mm (2.8” x 3” x 33.5”) | 70 x 76 x 815 mm (2.8” x 3” x 32.1”) | 14 mm (0.6”) | 1.5 mm (0.06”) | 140 mm (5.5”) | 950 mm (37.4”) | 6.36 kg (14 lbs) | 22 kg (48.5 lbs) |
EA-MG-B17D2 | 63.5 x 67 x 1210 mm (2.5” x 2.6” x 47.6”) | 63.5 x 67 x 1188 mm (2.5” x 2.6” x 46.8”) | 14 mm (0.6”) | 1.5 mm (0.06”) | 140 mm (5.5”) | 1350 mm (53.1”) | 7.7 kg (17 lbs) | 31 kg (68.3 lbs) |
EA-MG-B17D3 | 89 x 95 x 645 mm (3.5” x 3.7” x 25.4”) | 89 x 95 x 610 mm (3.5” x 3.7” x 24”) | 14 mm (0.6”) | 1.5 mm (0.06”) | 160 mm (6.3”) | 780 mm (30.7”) | 7.7 kg (17 lbs) | 22 kg (48.5 lbs) |
EA-MG-B17D4 | 102 x 108 x 525 mm (4” x 4.3” x 20.7”) | 102 x 108 x 405 mm (4” x 4.3” x 16”) | 20 mm (0.8”) | 3 mm (0.12”) | 190 mm (7.5”) | 680 mm (26.8”) | 7.7 kg (17 lbs) | 28 kg (61.7 lbs) |
EA-MG-B20D2 | 70 x 76 x 1524 mm (2.8” x 3” x 60”) | 70 x 76 x 1495 mm (2.8” x 3” x 58.9”) | 14 mm (0.6”) | 1.5 mm (0.06”) | 140 mm (5.5”) | 1650 mm (65”) | 9.1 kg (20 lbs) | 38 kg (83.8 lbs) |
EA-MG-B32D5 | 140 x 146 x 498 mm (5.5” x 5.7” x 19.6”) | 140 x 146 x 472 mm (5.5” x 5.7” x 18.6”) | 20 mm (0.8”) | 2 mm (0.08”) | 200 mm (7.9”) | 680 mm (26.8”) | 14.5 kg (32 lbs) | 30 kg (66 lbs) |
EA-MG-B40D3 | 103 x 90 x 1480 mm (4.1” x 3.5” x 58.3”) | 103 x 90 x 1450 mm (4.1” x 3.5” x 57.1”) | 20 mm (0.8”) | 2 mm (0.08”) | 160 mm (6.3”) | 1600 mm (63”) | 18.2 kg (40 lbs) | 40 kg (88 lbs) |
EA-MG-B48D5 | 140 x 146 x 750 mm (5.5” x 5.7” x 29.5”) | 140 x 146 x 710 mm (5.5” x 5.7” x 28”) | 20 mm (0.8”) | 2 mm (0.08”) | 205 mm (8.1”) | 960 mm (37.8”) | 21.8 kg (48 lbs) | 45 kg (99.2 lbs) |
EA-MG-B60D4 | 112 x 112 x 1524 mm (4.4” x 4.4” x 60”) | 114 x 114 x 1485 mm (4.5” x 4.5” x 58.5”) | 20 mm (0.8”) | 3 mm (0.12”) | 190 mm (7.5”) | 1650 mm (65”) | 27.3 kg (60 lbs) | 68 kg (150 lbs) |
Square Shape Anode
Model | Anode Dimensions ( W x H x L ) | Insert Dimensions | Prepackaged Size | Weight | ||||
High Potential | Standard Potential | Wc | T | Diameter | Length | N.W | G.W | |
EA-MG-B3S3 | 86.3 x 76 x 120 mm (3.4” x 3” x 4.7”) | 86.3 x 76 x 115 mm (3.4” x 3” x 4.5”) | 14 mm (0.6”) | 1.5 mm (0.06”) | 160 mm (6.3”) | 300 mm (11.8”) | 1.4 kg (3.1 lbs) | 8.5 kg (18.7 lbs) |
EA-MG-B5S3 | 86.3 x 76 x 204 mm (3.4” x 3” x 8”) | 86.3 x 76 x 198 mm (3.4” x 3” x 7.8”) | 14 mm (0.6”) | 1.5 mm (0.06”) | 160 mm (6.3”) | 350 mm (13.8”) | 2.3 kg (5 lbs) | 10 kg (22 lbs) |
EA-MG-B9S3 | 86.3 x 76 x 365 mm (3.4” x 3” x 14.4”) | 86.3 x 76 x 345 mm (3.4” x 3” x 13.6”) | 14 mm (0.6”) | 1.5 mm (0.06”) | 160 mm (6.3”) | 550 mm (21.7”) | 4.1 kg (9 lbs) | 16 kg (35.3 lbs) |
EA-MG-B17S3 | 86.3 x 76 x 680 mm (3.4” x 3” x 26.8”) | 86.3 x 76 x 650 mm (3.4” x 3” x 25.6”) | 14 mm (0.6”) | 1.5 mm (0.06”) | 160 mm (6.3”) | 800 mm (31.5”) | 7.7 kg (17 lbs) | 23 kg (50.7 lbs) |
EA-MG-B32S5 | 117 x 127 x 563 mm (4.6” x 5” x 22.2”) | 117 x 127 x 535 mm (4.6” x 5” x 21”) | 20 mm (0.8”) | 2 mm (0.08”) | 195 mm (7.7”) | 700 mm (27.6”) | 14.5 kg (32 lbs) | 30 kg (66.1 lbs) |
EA-MG-B48S5 | 117 x 127 x 845 mm (4.6” x 5” x 33.3”) | 117 x 127 x 820 mm (4.6” x 5” x 32.3”) | 20 mm (0.8”) | 2 mm (0.08”) | 200 mm (7.9”) | 1000 mm (39.4”) | 21.8 kg (48.1 lbs) | 45 kg (99.2 lbs) |
EA-MG-B60S4 | 102 x 102 x 1485 mm (4” x 4” x 58.5”) | 102 x 102 x 1515 mm (4” x 4” x 59.6”) | 20 mm (0.8”) | 3 mm (0.12”) | 190 mm (7.5”) | 1650 mm (65”) | 27.3 kg (60 lbs) | 68 kg (150 lbs) |
Circular Shape Anode
Model | Anode Dimensions ( ØD x L ) ) | Insert Dimensions | Prepackaged Size | Weight | ||||
High Potential | Standard Potential | Wc | T | Diameter | Length | N.W | G.W | |
EA-MG-BR50 | Ø114 x 288 mm (Ø4.5” x 11.3”) | Ø114 x 275 mm (Ø4.5” x 10.8”) | 25 mm (1”) | 2 mm (0.08”) | 160 mm (6.3”) | 480 mm (18.9”) | 5 kg (11 lbs) | 13.5 kg (29.8 lbs) |
EA-MG-BR100 | Ø114 x 565 mm (Ø4.5” x 22.2”) | Ø114 x 545 mm (Ø4.5” x 21.5”) | 25 mm (1”) | 2 mm (0.08”) | 175 mm (6.9”) | 710 mm (28”) | 10 kg (22 lbs) | 25 kg (55.1 lbs) |
EA-MG-BR145 | Ø146 x 505 mm (Ø5.75” x 19.9”) | Ø146 x 475 mm (Ø5.75” x 18.7”) | 25 mm (1”) | 2 mm (0.08”) | 200 mm (7.9”) | 650 mm (25.6”) | 14.5 kg (32 lbs) | 30 kg (66.1 lbs) |
EA-MG-B50R8 | Ø203 x 406 mm (Ø8” x 16”) | Ø203 x 395 mm (Ø8” x 15.6”) | 25 mm (1”) | 2 mm (0.08”) | 280mm (11”) | 580mm ( 22.8”) | 22.7kg (50 lbs) | 52kg (114.5 lbs) |
EA-MG-BR273 | Ø114 x 1524 mm (Ø4.5” x 60”) | Ø114 x 1450 mm (Ø4.5” x 57.1”) | 25 mm (1”) | 2 mm (0.08”) | 175 mm (6.9”) | 1650 mm (65”) | 27.3 kg (60 lbs) | 58 kg (127.9 lbs) |
